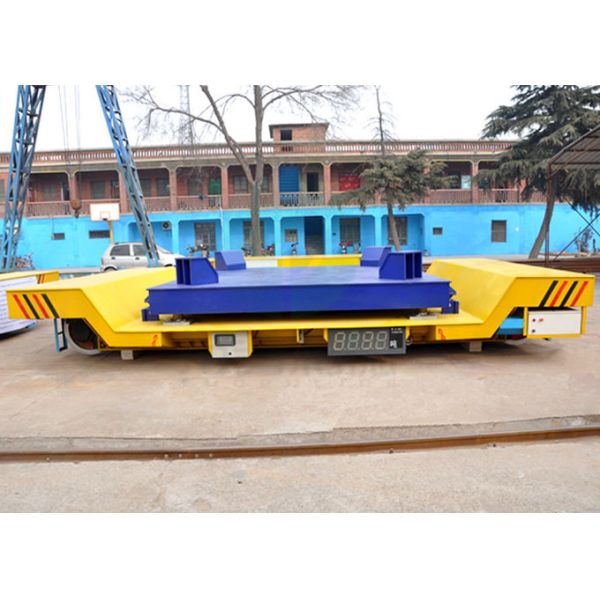

High Temperature Resistance Metal Ore Factory Rail Ladle Transfer Cart With Weighting Scale System

Brief Introduction --- Rail Ladle Transfer Cart

The rail ladle transfer cart is an electric operated material transfer cart which is powered by battery and running on the rails. Its special is designed for high temperature ladle transport in the steel manufacturing factory.

As the rail ladle transfer carts are equipped with steel wheels and move on steel rails they are suited to very high loading capacities thanks to the very low friction between steel and steel.The capacity load can up to 500 tons.

The batteries are installed in the transfer cart. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the ladle transfer cart, for example, start, stop, go forward and backward, adjust the speed and so on.

It can get rid of the limitation of cables and remote control, which makes the operation more convenient, safe, which can be applied in long distance rail transit system.

Product Details--- Rail Ladle Transfer Cart

Storage Battery	Battery Charger	Electric Control Box
Sound & Light Alarm	Remote Control	Casting Wheel

Product Funcation --- Rail Ladle Transfer Cart

1. Load-Bearing Transport

Load-bearing transport is the most basic and important function of transfer cart.

2. Turning

This series of rail ladle transfer cart have the function of running on S-shaped, C-shaped, curved rails, etc.

3. Lift

The hydraulic lift system can be installed on the transfer cart to achieve lifting and other functions

4. Side Flip

The transfer cart can realize self-discharging by the hydraulic device

5. Safety Devices

Safety devices can be installed on the transfer cart, for example, proximity switches, dead man stop, alarm systems, buffers to achieve the corresponding safety functions.

6. Others

Our company can research and develop the corresponding non-standard transfer cart to achieve the required functions according to the customers’ requirements.

Working Environment --- Rail Ladle Transfer Cart

1. Environment temperature: -20°C-40°C

2. Environment Humidity: Relative Humidity ≤ 70%

3. Environment PH Degree: Working in a Neutral or Approaching Neutral

4. Environment Electrical Sustainability: 25%

5. Air Cleanliness: Non-corrosive, non-flammable,non-explosive gas

Parameter List --- Rail Ladle Transfer Cart

What Product Handling Applications Use Transfer Carts?

1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)

tags:plant material transfer trailer,plant material transport trailer

Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to manufacture and sell lifting and material handling equipment with 15 years experience. NEWLD is a professional and international handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.

Our company is located in Xinxiang city, Henan province, covering an area of 33,300 square meters. It has a modern large-scale factory building, world-advanced production equipment and office equipment. The company has more than 150 employees, including 8 engineers and more than 20 technicians. The company has a first-class research and design team, which can undertake the design and production of various non-standard handling equipment.

NEWLD can not only provide transfer cart quotations, but also provide you with satisfactory handling solutions.

We can produce 1-1500 ton range of various tonnage of AGV, RGV, rail transfer cart, trackless transfer cart, flatbed trailer, towing tractor, locomotive turntable, industrial turntable and so on with more than 90 products. Customized all kinds of function required, such as turning, lifting, tilting, climbing, roller, anti-high temperature, anti-explosion, etc.. Newld also can provide transfer cart parts, including rail wheel, rail and rail accessories, industrial winch and so on.

Our products have a wide application field including metallurgy industry, machinery manufacturing industry, steel mill, mine industry, power industry, mold industry, automobile assembly industry, shipyard industry etc.

Our product has been exported to more than 90 countries and regions, such as Indonesia, America, Russia, Brazil, United Arab Emirates, Pakistan, Middle East, Saudi Arabia, Bangladesh, Philippines, Canada, Azerbaijani, Kuwait, Dubai, Egypt, Nepal, Vietnam, Laos, Myanmar, Germany, etc.
